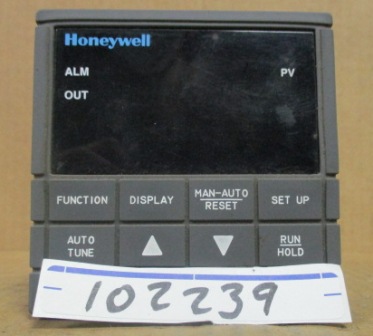

Honeywell UDC 2000 Mini Pro
Honeywell UDC 2000 Mini Pro
Additional Photos Honeywell UDC 2000 Mini Pro
Honeywell UDC 2000 Mini Pro

Item Number: 102239
Part Number: UDC 2000 Mini Pro

2 in Stock
Qty:     Price:
Condition: Used

Add To CartHelp

Description: Honeywell UDC 2000 Mini Pro Product Classification: Class I: Permanently Connected, Panel Mounted Industrial Control Equipment with protective earthing (grounding). (EN 61010-1) Enclosure Rating: Panel Mounted Equipment, IP 00, this controller must be panel mounted. Terminals must be enclosed within the panel. Front panel IP 65 (IEC 529). Installation Category (Overvoltage Category): Category II: Energy-consuming equipment supplied from the fixed installation. Local level appliances, and Industrial Control Equipment. (EN 61010-1) Pollution Degree: Pollution Degree 2: Normally non-conductive pollution with occasional conductivity caused by condensation. (Ref. IEC 664-1) EMC Classification: Group 1, Class A, ISM Equipment (EN 55011, emissions), Industrial Equipment (EN 50082-2, immunity) Method of EMC Assessment: Technical File (TF) Declaration of Conformity: 513093000-000. Accuracy ±0.3% of span typical (± 1 digit for display) 14 bit resolution typical Temperature Stability ±0.8% for 50˚F (28˚C) change Input Signal Failure Protection Thermocouple Inputs: Upscale or downscale burnout Burnout Current: 0.2 microamps Failsafe Output Level: Configurable 0-100% Input Impedance 4-20 Milliampere Input: 250 Ohms All Voltage Inputs: 200K Ohms Thermocouples: 10 Megohms Resistance Temperature Detector: 10K Ohms Stray Rejection Common Mode: AC (50 or 60 Hz): 120dB (with maximum source impedance of 100 Ohms) or ± 1 LSB (least significant bit) whichever is greater. Normal Mode AC (50 or 60 Hz): 60 dB (with 100% span peak-to-peak maximum)
Weight: 2.0
